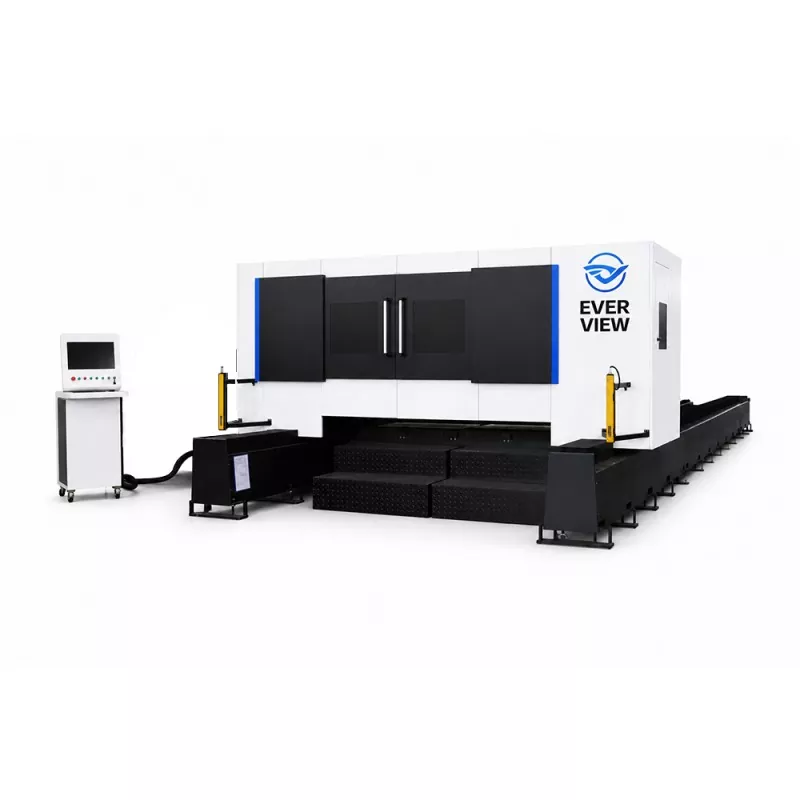

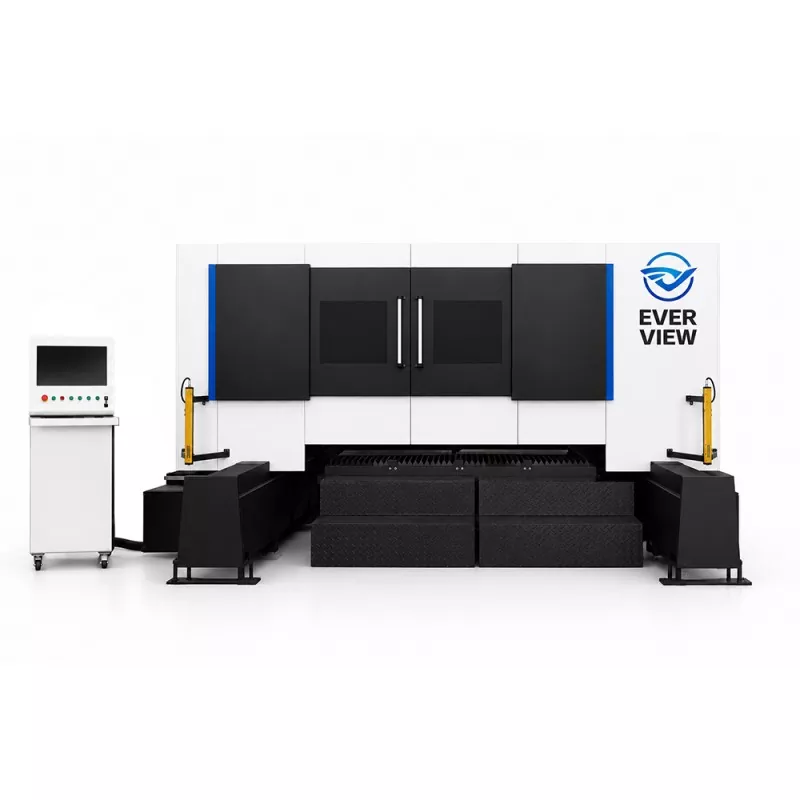

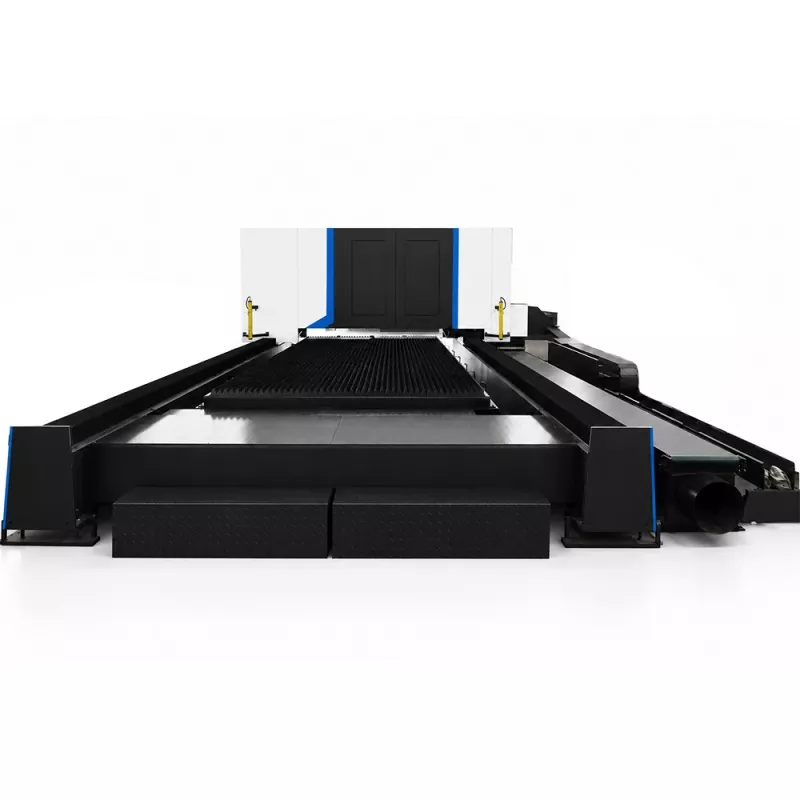

Large Format Beam Surround Cutting Machine

The EVER VIEW Large Format Beam Surround Cutting Machine is a high-performance industrial laser cutting system ideally suited for heavy-duty, large-format metal processing environments. Compared to traditional standard flatbed cutting equipment, its core beam-surround structure significantly enhances the overall rigidity of the machine tool, ensuring stable operation of the crossbeam over ultra-long travel distances while providing comprehensive protection for critical moving components.

The equipment specializes in cutting ultra-large sheets, long structural components, and thick plates, thereby completely eliminating the efficiency losses and dimensional deviations typically caused by segmented cutting and repetitive material repositioning. Integrated with the industrially proven Bochu laser system, it enables precise path planning, stable cutting control, and convenient parameter tuning; this supports long-duration, uninterrupted mass production, fully meeting the demands of large-scale manufacturing facilities for both high efficiency and high precision.

Core Structure and System Advantages:

1. Innovative Beam-Surround Structural Design

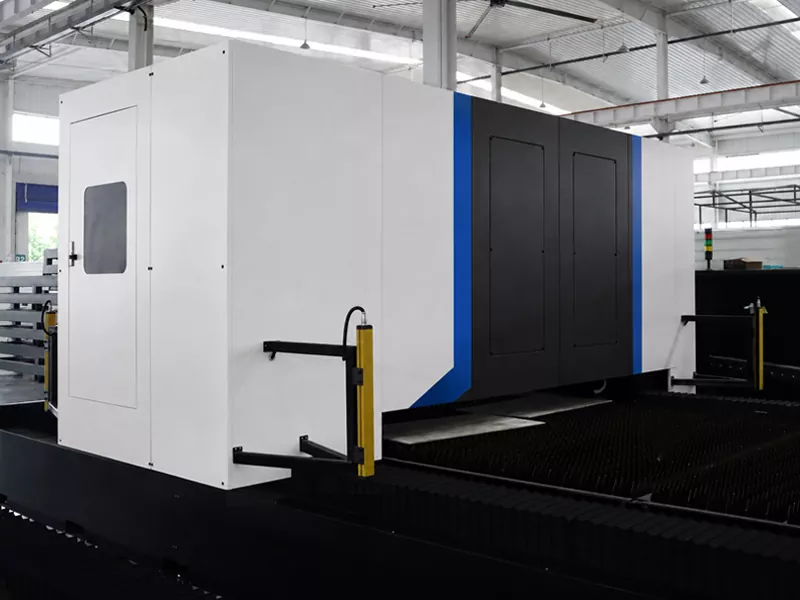

The beam-surround structure constitutes the core competitive advantage of this equipment, having been specifically optimized to meet the rigorous demands of large-format cutting operations. When processing extra-large and extra-long sheet materials, the crossbeam is required to execute continuous, long-travel movements. The enclosed beam structure delivers multiple performance enhancements:

- Enhanced stability during long-distance travel, ensuring uniform cutting precision across the entire sheet without positional deviation.

- Comprehensive protection for core moving components, minimizing equipment wear caused by dust and cutting slag in heavy-duty industrial environments.

- Integrated optimization of the mechanical structure, resulting in superior vibration resistance and an extended service life for the equipment.

- Optimized for heavy-duty, continuous production environments; precision remains consistent over long periods of operation without degradation.

2. The Mature Bochu Laser Cutting System

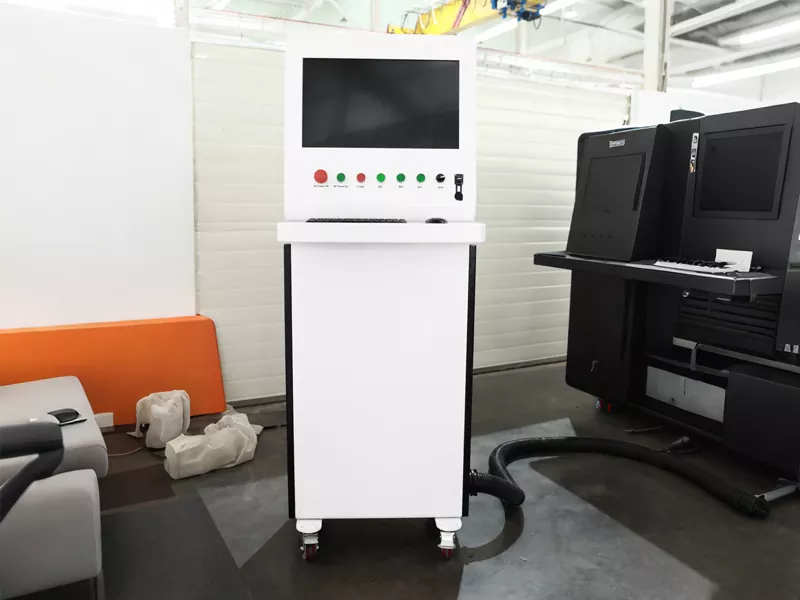

The "Large Format Beam Surround Cutting Machine" comes standard with the professional Bochu laser cutting system. This system integrates functions such as drawing import, intelligent nesting, automatic path planning, precise parameter setting, and end-to-end production management. Featuring intuitive operational logic and robust industrial compatibility, it effectively streamlines the cutting process and reduces operational complexity for the user.

Specifically designed for cutting scenarios involving large formats, long travel paths, and complex nesting layouts, the system significantly minimizes human error, boosts the yield rate for large workpieces, and lowers training costs for new operators. Furthermore, it supports multi-language user interfaces to accommodate a global user base, facilitating seamless technical integration and after-sales maintenance.

3. Diversified Customization Options

To meet the diverse production requirements of different industries and workshop environments, EVER VIEW offers comprehensive, personalized customization options for the equipment. Customizable features include: processing dimensions (ranging from 6000×2000mm to 12000×2500mm, with support for non-standard sizes); laser power (from 3000W to 12000W and higher); segmented dust extraction systems; auxiliary loading devices; multi-voltage compatibility; equipment color schemes; brand logo placement; and complete export packaging solutions.

Applicable Materials and Application Fields

1. Processable Metal Materials

This equipment is capable of precisely processing a wide variety of metal sheet materials commonly used in industrial applications. These include carbon steel for structural components, stainless steel for decorative and protective applications, galvanized steel for electrical enclosures, aluminum alloy for lightweight equipment, and copper alloys for custom decorative pieces. Specific cutting thicknesses can be flexibly adjusted and optimized based on the laser power, material properties, and specific processing requirements.

2. Key Application Industries and Products

The Large Format Beam Surround Cutting Machine is widely adaptable to various processing scenarios involving large-sized workpieces. Its core application areas include:

- Steel Structure Fabrication: Base plates, stiffener plates, connection plates, and large-scale support brackets.

- Heavy Industry & Construction Machinery: Equipment frames, structural reinforcement plates, and protective enclosures.

- Agricultural Machinery: Harvester panels, chassis plating, and protective/support components.

- Shipbuilding & Marine Accessories: Large-format plate components and long structural metal members.

- Elevator & Electrical Industries: Stainless steel elevator panels, and large-scale cabinet doors and enclosures.

- Custom Metal Fabrication: Non-standard oversized parts and mixed-batch production workpieces.

Real-World Factory Application Case Study

A domestic heavy machinery manufacturer, engaged in the long-term mass production of oversized carbon steel chassis enclosures and structural guards, faced significant production bottlenecks with their existing standard flatbed cutting machines. Specifically, oversized workpieces could not be cut in a single pass, necessitating repetitive manual repositioning and segmented cutting.

Traditional processes not only consumed excessive labor and dragged down production efficiency but also were highly prone to splicing errors and dimensional deviations. This resulted in material waste and elevated rework rates, making it difficult to meet the delivery demands of urgent orders.

After upgrading to the EVER VIEW Large Format Beam Surround Cutting Machine, the company achieved single-pass, integral cutting and forming for all its oversized carbon steel workpieces. The machine's unique "surround-beam" structure ensures exceptional stability during long-travel operations, completely eliminating the issues associated with repetitive positioning errors. Following this upgrade, the company saw a 35% increase in the processing efficiency of large-format parts, achieved a dimensional consistency yield rate of 99.8%, significantly reduced the time required for manual auxiliary tasks, and notably optimized its overall production workflow. This case study fully validates the equipment's stable performance and practical value within heavy-industry mass production environments.

Core Product Advantages

1. Ultra-Large Cutting Format, High Forming Efficiency

Supports custom-sized processing tables, enabling the single-pass cutting and forming of ultra-large metal plates. This eliminates inefficient segmented processing methods, thereby maximizing material utilization and production efficiency.

2. Robust Structure, Exceptional Durability

Featuring a heavy-duty, integrated machine body paired with an exclusive "surround-beam" structure, the equipment possesses ample overall rigidity. It demonstrates excellent vibration resistance during high-speed operation, making it ideally suited for long-term, continuous heavy-duty production within demanding factory environments.

3. Streamlined Processes, Enhanced Capacity

By minimizing repetitive sheet handling and positioning steps, and simplifying the loading and unloading of large workpieces, the system enhances production continuity and effectively shortens the production cycle for batch orders.

4. Stable Cutting, Uniform Quality

A rigid mechanical structure, paired with a mature Bochu laser control system, ensures smooth cutting paths and uniform kerfs. This results in highly consistent workpiece quality, meeting the rigorous delivery standards required for industrial-scale production.

5. Flexible Customization, Broad Adaptability

Functional configurations can be freely combined based on workshop layout, capacity requirements, and processing materials, allowing us to create exclusive, personalized cutting solutions tailored specifically to each user.

FAQ

Q1: What are the maximum dimensions of metal sheets that this Large Format Beam Surround Cutting Machine can process?

The equipment comes standard with three processing formats: 6000×2000mm, 8000×2500mm, and 12000×2500mm. Additionally, we support non-standard customization based on the user's specific sheet dimensions and available workshop space. This enables the single-pass cutting and forming of various ultra-large sheets, completely eliminating the inefficiencies and precision issues associated with segmented processing.

Q2: What advantages does the "beam surround" structure offer compared to standard gantry-style cutting machines?

While standard gantry cutters feature an open structure, the EVER VIEW enclosed "beam surround" structure significantly enhances the equipment's overall rigidity and stability during long-distance travel. It effectively protects core moving components from dust and cutting slag erosion, thereby reducing mechanical wear and lowering the rate of equipment failure. In large-format, long-travel operations, it delivers superior stability in positioning and cutting precision, making it ideally suited for long-term, heavy-duty mass production environments.

Q3: Does the equipment support personalized customization and after-sales technical services for international users?

Yes, it does. As a global supplier of laser equipment, EVER VIEW provides comprehensive end-to-end services for international clients. These services include voltage adaptation, multi-language interfaces, custom color schemes, logo branding, export-compliant packaging, remote installation guidance, operator technical training, and long-term after-sales maintenance support. We can also tailor exclusive cutting solutions to align with local production conditions.

Reasons to Choose EVER VIEW

EVER VIEW bases its approach on actual industrial production requirements, focusing on resolving the specific processing pain points faced by our users. Our pre-sales team conducts a comprehensive assessment—taking into account the user's sheet material, cutting thickness, workpiece dimensions, workshop layout, and capacity targets—to precisely match the equipment configuration.

This ensures a perfect fit between the machinery and the production environment, preventing the pitfalls of arbitrary equipment selection. We offer direct-from-factory services, eliminating intermediaries to deliver superior cost-effectiveness. Furthermore, we support brand customization for distributors and provide tailored solutions for end-users. Backed by a comprehensive system encompassing pre-sales consultation, in-sales optimization, and after-sales support, we have earned the enduring trust of industrial clients both domestically and abroad.
