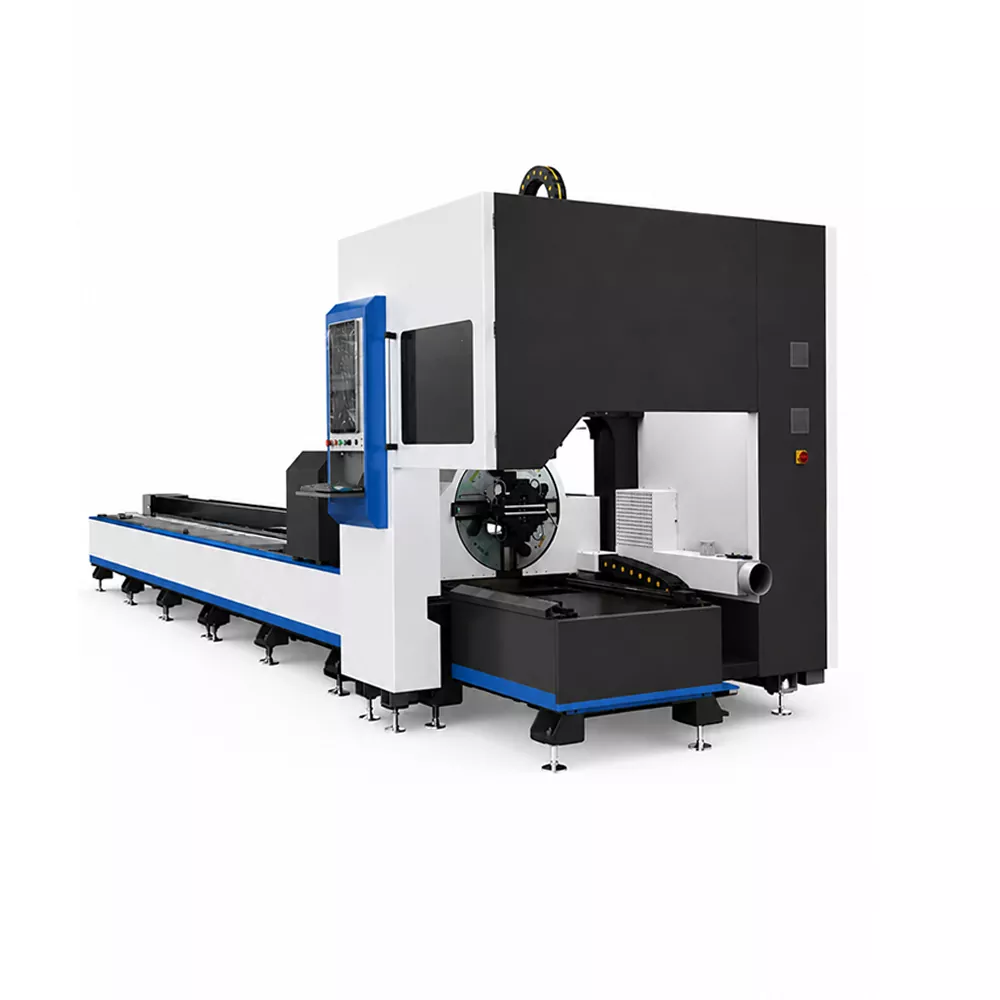

Four-Chuck Pipe Cutter

The EVER VIEW Four-Chuck Pipe Cutter is a laser cutting system specifically tailored for medium-to-large-scale pipe processing facilities. Traditional single- or dual-chuck pipe cutters offer limited clamping and support capabilities; consequently, when processing long, heavy, or thin-walled pipes, they are prone to vibration and displacement, resulting in substandard cutting precision and poor batch consistency. Through structural optimization, this machine achieves synchronized multi-point clamping and stable support throughout the entire workflow—encompassing pipe loading, feeding, rotation, and cutting.

The equipment is capable of processing carbon steel, stainless steel, galvanized steel, aluminum, and various alloy pipes. It accommodates a wide range of pipe shapes—including round, square, rectangular, and oval pipes, as well as custom irregular profiles—and meets processing requirements for pipes ranging from 3 to 12 meters in length with varying wall thicknesses. Powered by a synchronized CNC servo control system, the machine performs integrated processing—including cutting, punching, slotting, and profile shaping—in a single continuous operation. This capability significantly elevates the level of automation and production efficiency within pipe processing lines. As a professional supplier of industrial equipment, EVER VIEW is dedicated to resolving the complex challenges associated with the high-precision, batch processing of diverse pipe materials.

Core Technical Advantages

1. Four-Chuck Multi-Point Stable Clamping System

The core highlight of this equipment is its four-chuck synchronized clamping structure, which provides balanced, multi-point support for the pipe. This design effectively suppresses vibration and displacement during high-speed rotation and cutting operations. It is ideally suited for the mass production of long and heavy-duty pipes, ensuring cutting point stability and uniform rotational angles. By addressing the root causes of error, the system significantly enhances the dimensional precision of hole positions, slots, and end-face profiles. Furthermore, the balanced clamping force prevents deformation in thin-walled pipes caused by excessive pressure, thereby offering a definitive solution to long-standing industry challenges such as thin-wall collapse and dimensional deviations.

2. Ultra-High Batch Cutting Consistency

The Four-Chuck Pipe Cutter is equipped with a servo-drive system and CNC-synchronized rotation technology, enabling precise material feeding and precise-angle rotation. During mass production, it maintains stable positioning accuracy, ensuring uniform specifications across all workpieces. This significantly reduces the need for subsequent correction and trimming processes, optimizes the fit for welding and assembly, and effectively boosts the factory's overall production capacity and yield rate.

3. Compatibility with All Materials and Multiple Profiles

Compatible with all mainstream industrial metal tubing: structural carbon steel pipes, decorative stainless steel pipes, outdoor galvanized pipes, lightweight aluminum pipes, and custom alloy tubing. Through flexible chuck configurations, it can process round, square, rectangular, and oval pipes, as well as various irregular profiles, thereby meeting the diverse processing requirements of multiple industries.

4. In-House Workshop Customization Advantage

EVER VIEW operates its own sheet metal and painting workshops, allowing for the independent completion of machine casing fabrication, structural component processing, and surface treatments. Unlike most manufacturers that rely on outsourced processing, our in-house R&D and manufacturing model guarantees uniform paint finishes, consistent color schemes, and precise casing assembly. We offer personalized customization options for machine body colors, brand logos, casing structures, and export-specific aesthetics, providing overseas clients and distributors with high-quality, standardized finished equipment.

5. Global Flexible Customization Options

We offer a one-stop solution for personalized configurations, with laser power options ranging from 1000W to 6000W and beyond. Additionally, we provide customization for pipe processing lengths, chuck specifications, fully automated loading and unloading systems, operating voltages, and export packaging. Configurations can be flexibly adjusted to suit specific client production capacities, pipe specifications, and factory layouts, ensuring full compliance with the production standards of various regions worldwide.

Applicable Industries and Processing Scenarios

- Steel Structures & Construction Machinery: Processing of structural pipe frames, support tubing, long-span pipe components, and mechanical protective structures.

- Metal Furniture & Display Equipment: Cutting of frames for tables and chairs, shelving brackets, display racks, and decorative pipe components.

- Fitness Equipment & Automotive Parts: Processing of equipment frames, handlebar tubing, automotive pipe brackets, and exhaust system components.

- Guardrail & Handrail Projects: Mass production of outdoor guardrails, stair handrails, safety barriers, and stainless steel pipe components.

- Agricultural Machinery: Cutting of frames for farm machinery, protective tubing, and support brackets.

Real-World Factory Application Case Study

Case Background: A domestic factory specializing in guardrails and steel structures—with a core focus on the custom processing of outdoor galvanized guardrails and steel frames—relies primarily on 6-to-9-meter-long galvanized square and round tubes as raw materials. Their original, traditional dual-chuck equipment suffered from severe vibration when processing long tubes, frequently resulting in hole position deviations and irregular end faces. Consequently, workpieces required extensive manual correction prior to welding, which severely hampered production capacity and yield rates.

Optimization Solution: The factory upgraded its operations by installing the EVER VIEW Four-Chuck Pipe Cutter. This unit was configured with optional extended tube supports, a 3000W laser power source, and a fully automated loading/unloading system to meet the demands of mass production. Additionally, leveraging the brand's in-house sheet metal and painting workshops, the equipment's exterior color scheme and brand logo were customized to create a professional aesthetic suitable for factory tours and inspections by overseas clients.

Application Results: Following the equipment upgrade, the vibration issues associated with cutting long tubes were completely eliminated. Tube positioning and rotational stability improved significantly, bringing the precision of hole positions and end faces up to high industrial standards. The rate of manual workpiece correction dropped by 90%, welding and assembly efficiency increased by 35%, and the consistency of mass-produced products fully met quality benchmarks. The customized machine exterior presented a clean and professional image, significantly enhancing the factory's overall corporate image and bolstering trust among overseas clients, thereby contributing to stable revenue growth and a continuous increase in orders.

Core Product Specifications & Parameters

FAQ

Q1: Is the Four-Chuck Pipe Cutter suitable for processing ultra-long, thin-walled metal tubes?

A1: Absolutely. It is fully compatible. This equipment is specifically optimized for processing long and thin-walled tubes. Its four-chuck, multi-point clamping system ensures balanced support across the entire length of the tube, effectively eliminating vibration issues during high-speed cutting and preventing deformation in thin-walled materials. It is capable of stably performing high-precision cutting on ultra-long tubes (up to 12 meters) as well as various types of irregular, thin-walled tubes—thereby resolving precision challenges that traditional dual-chuck systems are unable to overcome.

Q2: Does the equipment support customization and configurations compliant with export standards?

A2: Absolutely. Leveraging our in-house sheet metal fabrication and painting workshops, we offer comprehensive customization options covering machine body color, brand logos, enclosure structure, laser power, and material loading/unloading solutions. Furthermore, the system can be adapted to meet the specific voltage standards of various countries; it features an English-language operating interface, professional export-grade packaging, and remote after-sales support for overseas clients—fully satisfying the requirements of international trade and OEM partnerships with distributors.

Q3: Compared to traditional machinery, what specific production challenges does the four-chuck tube cutter resolve?

A3: It addresses four core production pain points: First, it eliminates vibration and positional deviations during the cutting of long tubes, thereby significantly enhancing workpiece precision. Second, it integrates laser-based punching and slotting capabilities, replacing manual drilling and marking processes to reduce labor costs. Third, it improves consistency in batch processing, minimizing the need for workpiece rework and reducing costs associated with welding fit-up. Fourth, it features upgraded aesthetics and craftsmanship, meeting the high standards required for showroom displays in high-end manufacturing facilities as well as for international export markets.

Reasons to Choose EVER VIEW

Leveraging our professional R&D capabilities, independent manufacturing infrastructure, and comprehensive after-sales support, EVER VIEW provides customers with high-quality equipment supplied directly from the factory. Our brand possesses end-to-end manufacturing capabilities—spanning sheet metal processing, surface finishing, and final assembly—ensuring strict and fully controllable quality assurance throughout the production chain. We offer a one-stop service experience for global users and distributors, including solution customization, cutting sample testing, equipment installation, operator training, remote maintenance support, and spare parts consultation—empowering businesses to reduce costs, boost efficiency, and solidify their market competitiveness.

Inquiries and Services

If you have specific requirements regarding tube specifications, production capacity, equipment configuration, or brand customization, please provide us with details regarding your tube material, diameter, wall thickness, length, and daily production volume. EVER VIEW will then curate a tailored equipment solution and provide a direct-from-factory quotation specifically for your needs. We also offer complimentary cutting sample testing to ensure the equipment is precisely matched to your specific production environment.
