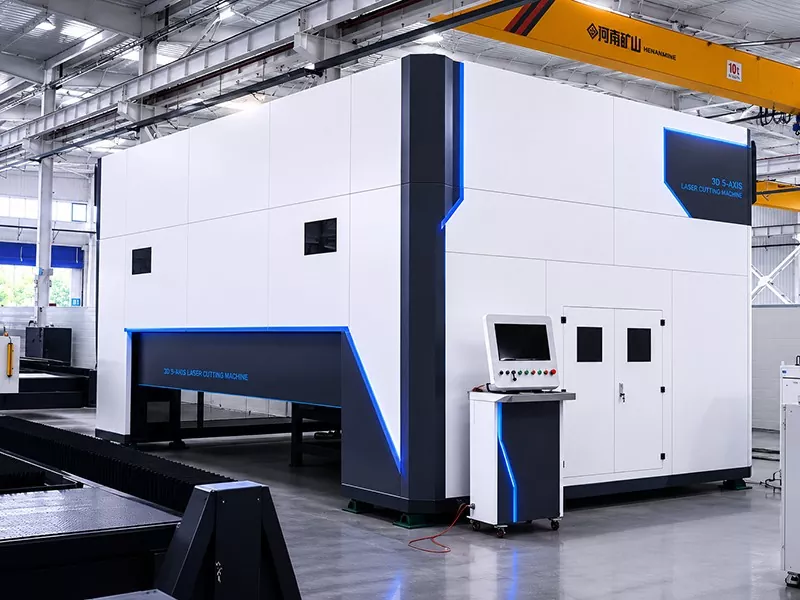

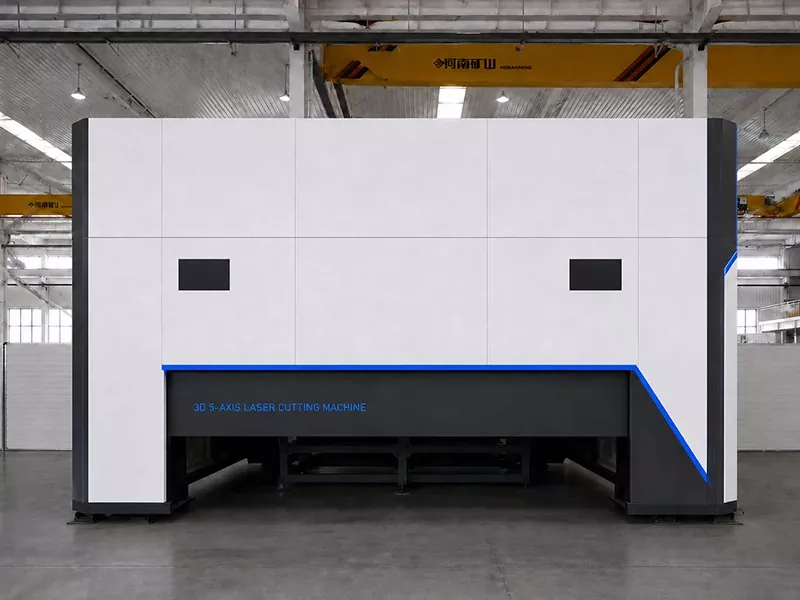

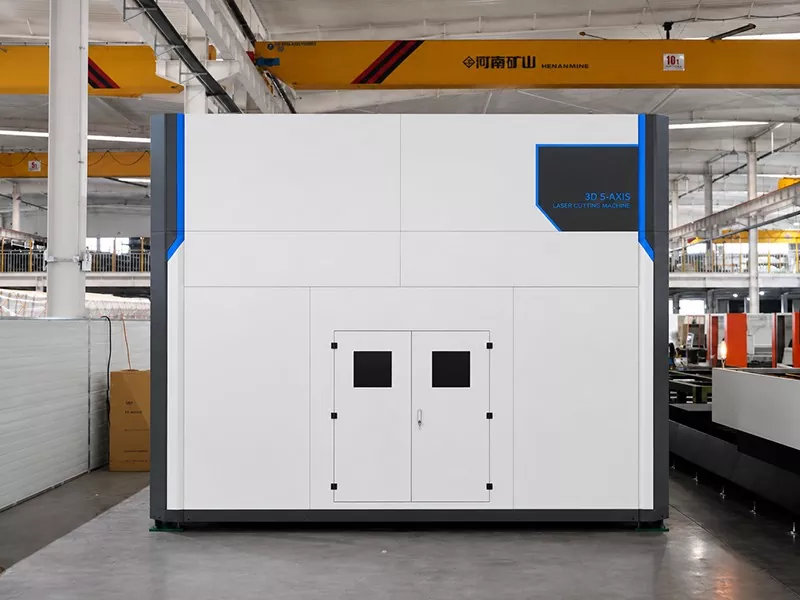

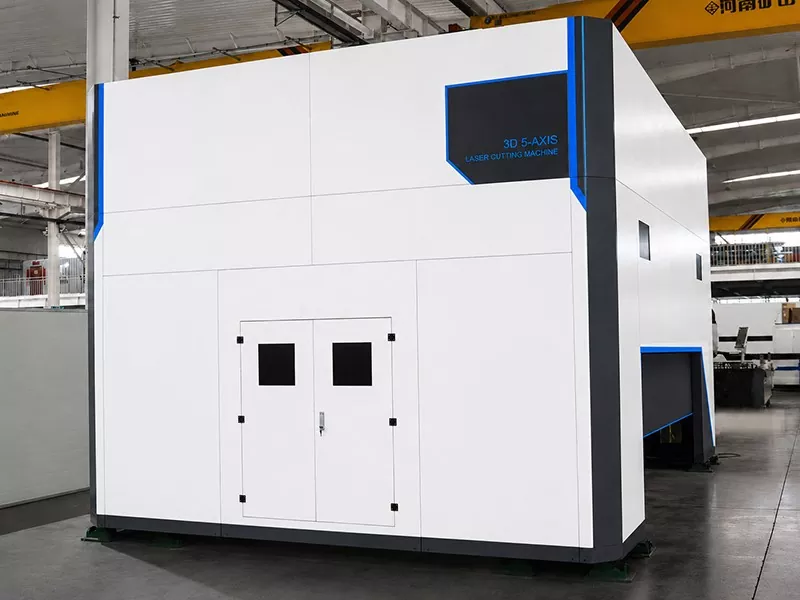

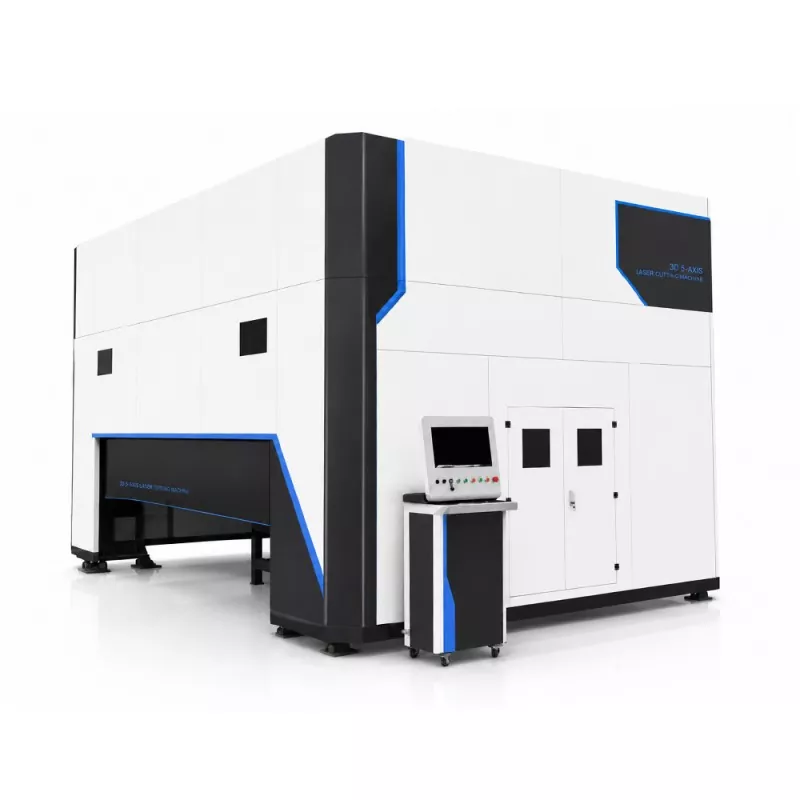

3D Five-Axis Laser Cutting Machine

Traditional 2D laser cutting machines are suitable only for cutting flat sheets and cannot meet the requirements for trimming and multi-angle precision finishing once 3D workpieces have been formed. The EVER VIEW 3D Five-Axis Laser Cutting Machine breaks through the limitations of planar cutting technology, offering full-range, multi-angle processing capabilities. The system employs a five-axis linkage motion structure, allowing the laser cutting head to move freely around the workpiece with adjustable angles, thereby enabling the high-precision, one-step processing of complex curved surfaces, side holes, irregular contours, and welded assemblies.

As a premier provider specializing in high-end metal laser processing solutions, EVER VIEW strictly adheres to industrial manufacturing standards. Every machine undergoes rigorous frame precision calibration, structural stability testing, and meticulous surface treatment to ensure long-term reliability in high-intensity industrial production environments. The equipment is capable of processing a wide variety of metal materials—including carbon steel, stainless steel, aluminum alloys, and galvanized sheets—and supports customization of laser power, processing travel range, and fixturing tools to meet specific production requirements.

Core Product Advantages

1. True 3D, Comprehensive Processing Capability

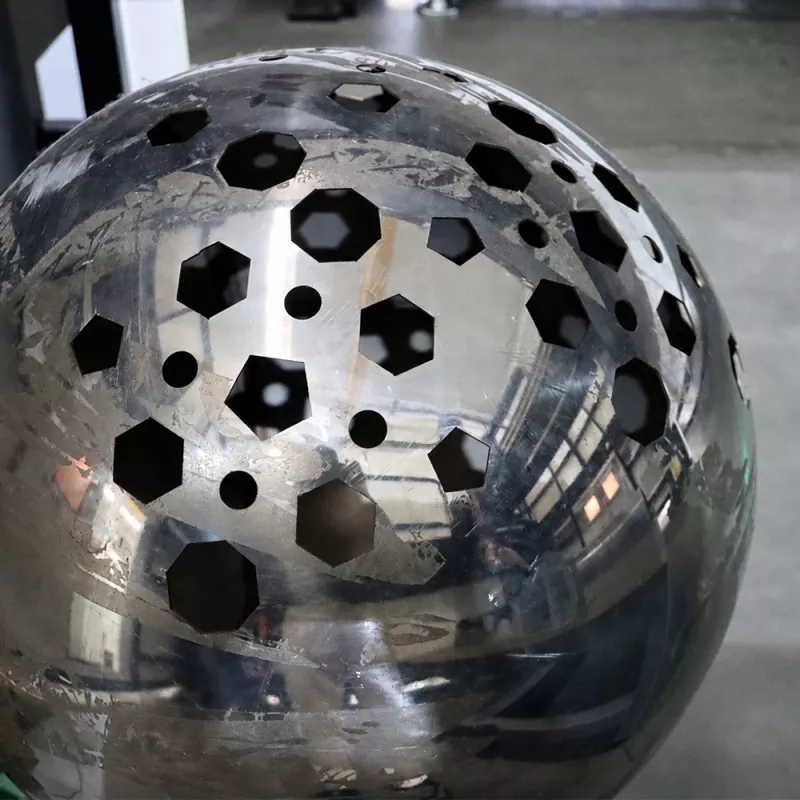

The 3D Five-Axis Laser Cutting Machine completely eliminates the "dead zones" (unreachable areas) often encountered with traditional planar cutting equipment. It is compatible with a diverse range of complex 3D workpieces, such as automotive stamped parts, mechanical enclosures, tubular structures, and hot-formed profiles. It supports integrated processing—including trimming, hole cutting, contour finishing, and weld seam trimming—eliminating the need for multiple repositioning steps or secondary processing operations.

2. Bochu Industrial Laser Head: Stable Performance

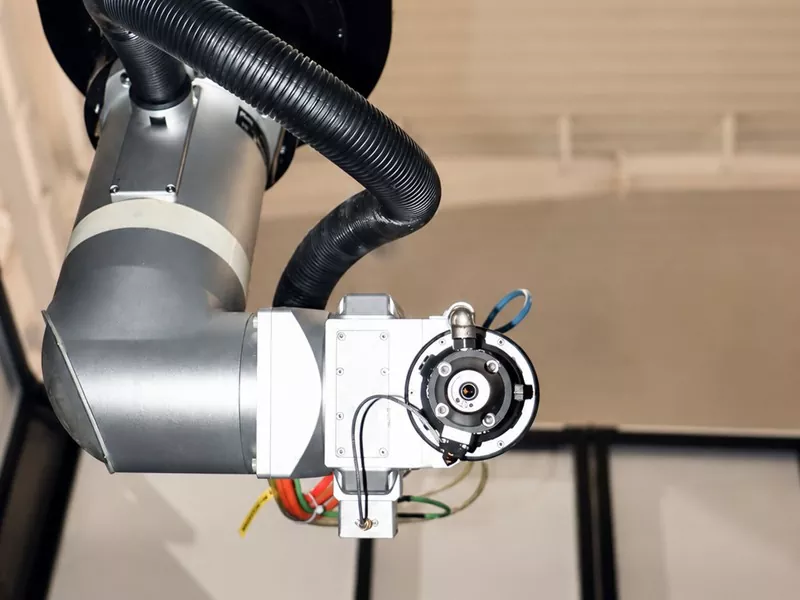

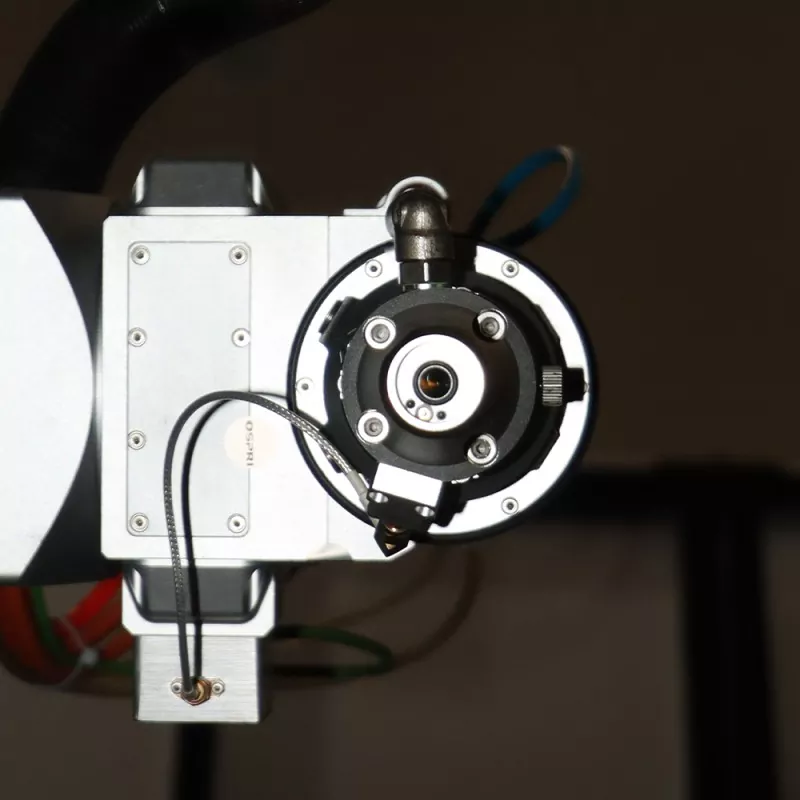

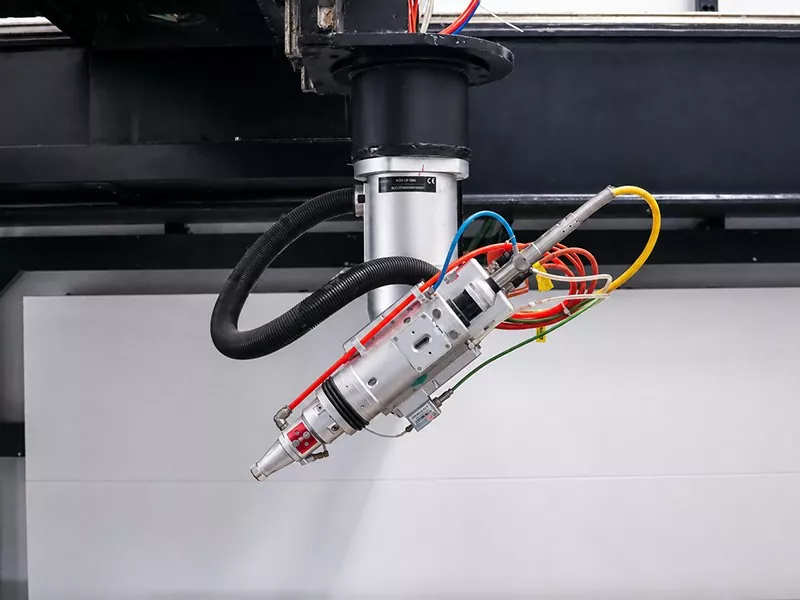

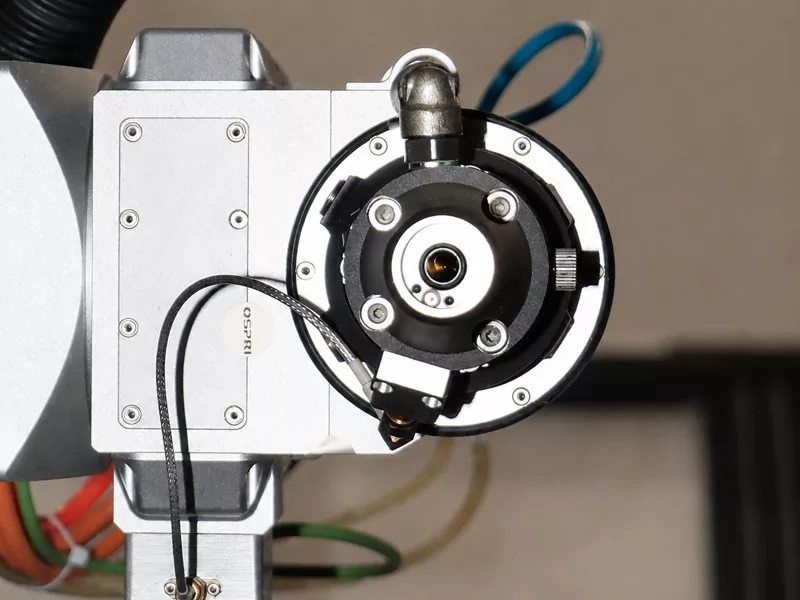

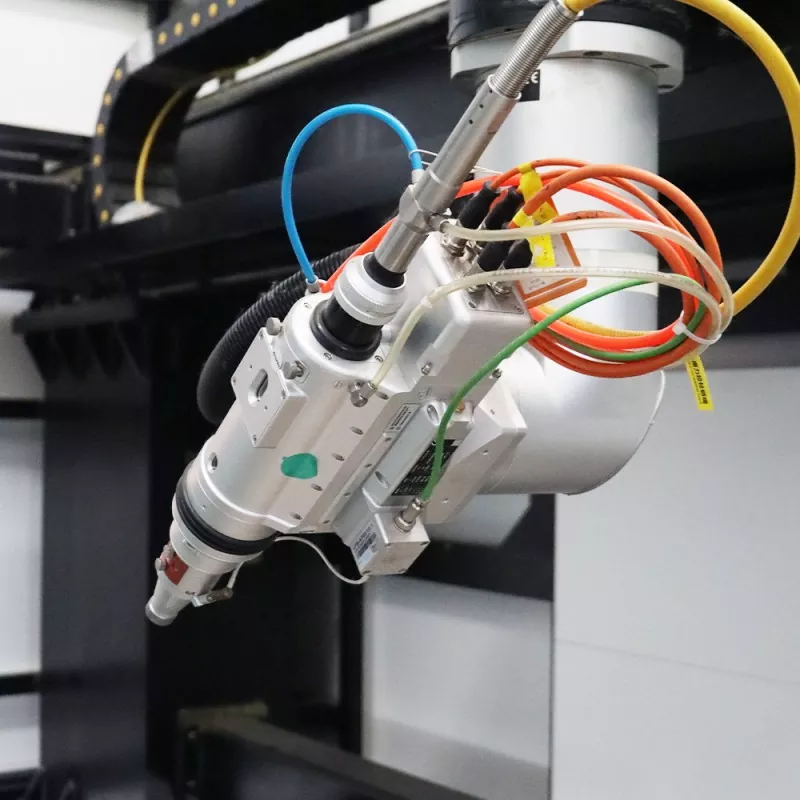

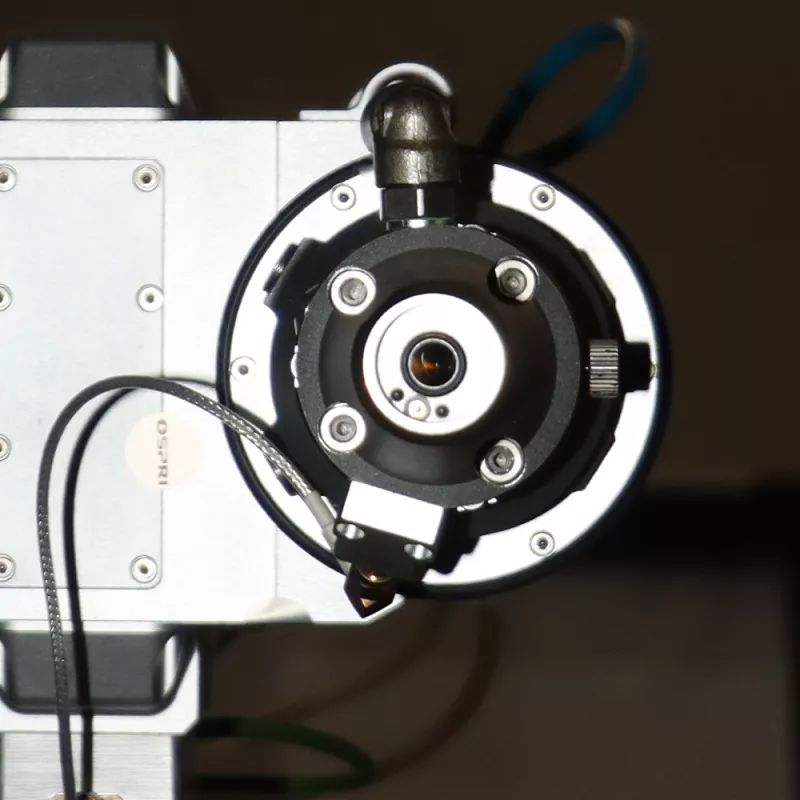

Equipped with an industrial-grade Bochu laser head, the machine maintains consistent cutting precision and speed even under high-frequency, multi-angle oscillation and displacement conditions. It supports intricate processes such as bevel cutting, curved surface trimming, and micro-hole processing, producing cut cross-sections that are smooth and burr-free—fully meeting the rigorous standards of high-end industrial production.

3. 5-Axis Simultaneous Motion System: Flexible Processing Capabilities

The professional 5-axis simultaneous control system supports multi-dimensional angle adjustment of the cutting head, allowing it to approach the workpiece from any direction. This makes it perfectly suited for processing irregularly shaped structural components and curved parts, significantly expanding the processing scope and application versatility of the laser cutting equipment.

4. Drastic Reduction in Manual Rework and Processing Errors

Addressing the pain points of traditional processes—such as manual grinding, drilling, and repetitive clamping and positioning—this equipment utilizes digital program control. It enables complete forming and processing in a single clamping operation, effectively minimizing manual operational errors, shortening production cycles, and significantly enhancing the consistency and yield rate of mass-produced products.

5. Integrated In-House Manufacturing: Quality Under Strict Control

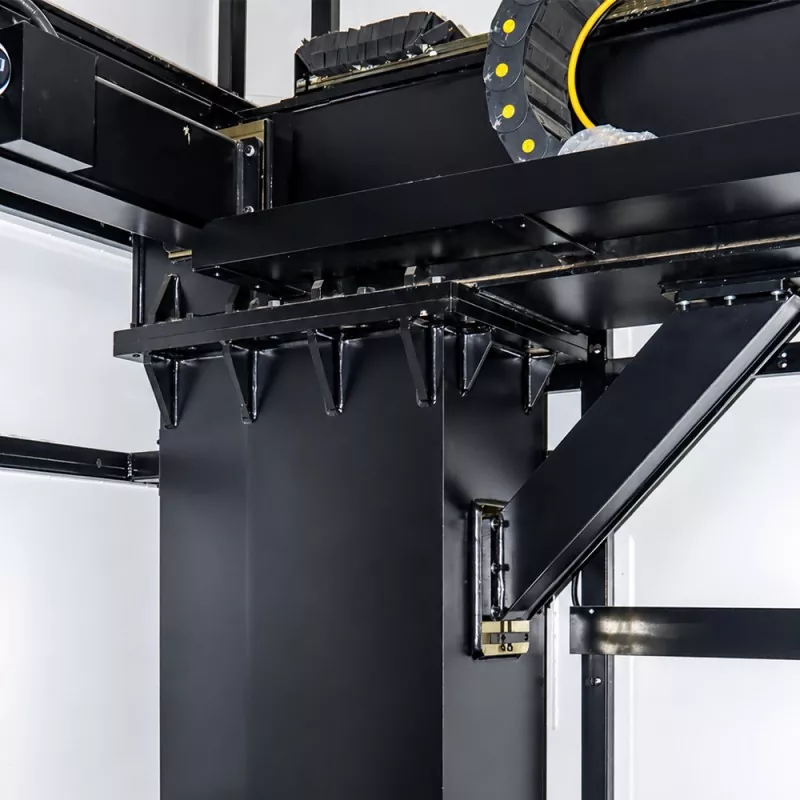

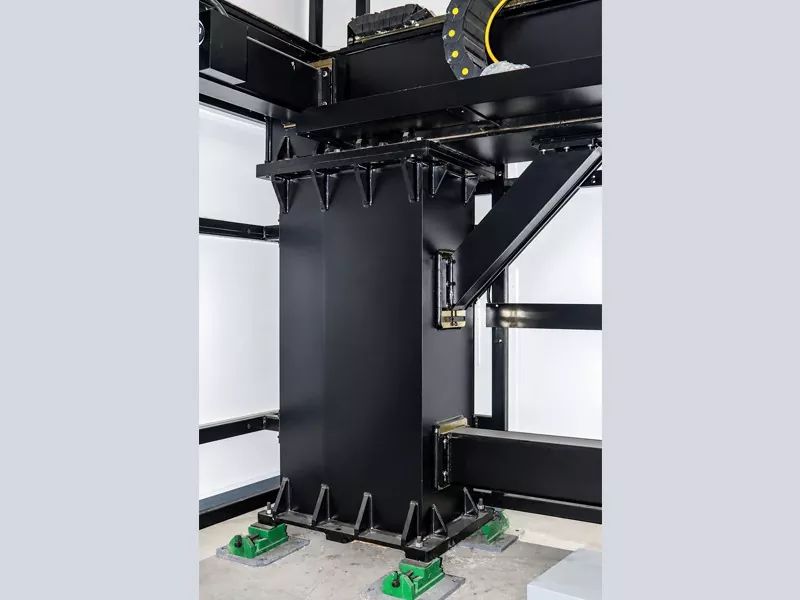

EVER VIEW’s proprietary manufacturing facility is equipped with a gantry milling workshop, shot blasting equipment, cleanrooms, a sheet metal processing workshop, a powder coating and painting workshop, and a professional welding workshop. The entire production workflow—encompassing machine frame processing, structural welding, precision assembly, and surface treatment—is completed in-house. This allows for strict control over equipment precision, structural stability, and aesthetic quality, while also supporting personalized customization and export-standard packaging.

Applicable Industries and Processing Materials

1. Primary Application Industries

The 3D Five-Axis Laser Cutting Machine is widely utilized in fields such as automotive component manufacturing (hot-stamped parts, battery brackets, body structural components), general machinery manufacturing (equipment enclosures, protective guards, welded structural parts), metal stamping and forming, lightweight aerospace components, engineering and agricultural machinery accessories, home appliance hardware, and the precision finishing of welded pipe structures.

2. Compatible Processing Materials

The system can stably process standard metal materials—including carbon steel, stainless steel, aluminum alloys, and galvanized sheets—and supports the customized processing of special alloys. Cutting parameters can be dynamically adjusted based on material thickness, workpiece geometry, and specific process requirements to suit a wide variety of production scenarios.

Real-World Industrial Application Case Study

Case Background: A manufacturer of new energy vehicle components, specializing in the processing of body structural parts, had long faced significant challenges in processing hot-stamped parts and stamped structural components. Their traditional workflow relied on manual trimming, drilling, and plasma cutting—methods plagued by low production efficiency, inconsistent part precision, high rates of human error, and high labor costs. Consequently, the defect rate for finished product assembly remained persistently high, severely constraining the company's capacity for mass delivery.

Solution: The company introduced the EVER VIEW 3D Five-Axis Laser Cutting Machine. Tailored to the structural characteristics of automotive stamped parts and hot-formed beams, the system was paired with custom-designed fixtures. Through digital programming, it achieved an integrated workflow encompassing automatic workpiece positioning, 3D surface trimming, precision drilling, and contour finishing for formed workpieces.

Application Results: Since the equipment was commissioned, the company has completely eliminated manual secondary correction processes. Workpiece positioning accuracy has improved significantly; consequently, the defect rate for finished product assembly dropped from 5% to 0.5%, and single-shift production efficiency increased by over 80%. Leveraging EVER VIEW’s robust machine frame manufacturing processes and clean-room assembly quality, the equipment operates continuously and stably 24 hours a day, delivering consistent cutting quality without downtime. This effectively reduces the company's production and after-sales service costs, fully meeting the high-precision, mass-production demands for critical automotive components.

FAQ

Q1: Which types of workpieces are suitable for processing on the 3D Five-Axis Laser Cutting Machine?

This equipment is specifically designed for 3D formed workpieces that cannot be processed by standard 2D planar machinery. It can process metal components created through stamping, bending, welding, hot forming, and deep drawing—including automotive body parts, machinery enclosures, curved piping, irregularly shaped parts, and lightweight alloy structural components. It meets the requirements for trimming, drilling, and contour finishing of various workpieces after they have been formed.

Q2: Does the equipment support customization and export-specific configurations?

Yes, it does. As a specialized manufacturing facility, EVER VIEW offers comprehensive customization services. We can adjust parameters such as laser power, processing travel range, fixture systems, operating voltage, machine body color, and brand logos to meet specific requirements. Additionally, the equipment comes with international-standard export packaging, multi-language operating systems, and remote technical support to ensure seamless adaptation for overseas shipping and operational environments.

Q3: What are the core advantages compared to traditional manual processes and standard 2D cutting machines?

Compared to traditional manual processes, this equipment eliminates labor-intensive steps such as manual grinding, drilling, and repetitive positioning, thereby reducing labor costs and processing errors while significantly improving product consistency. Compared to standard 2D cutting machines, this equipment features five-axis simultaneous motion capabilities, enabling multi-angle processing. This allows it to overcome processing blind spots on curved surfaces and complex 3D structures, achieving "one-step forming" processing. Consequently, it dramatically boosts production efficiency and finished product yield rates, making it ideally suited for the mass production of high-precision, high-value-added metal components.

Equipment Core Parameters and Customization Options

1. Basic Core Parameters

● Equipment Type: 3D 5-Axis Laser Cutting Machine;

● Core Configuration: Bochu Industrial Laser Head;

● Motion System: Full 5-Axis Simultaneous Linkage System;

● Cooling Method: Dedicated Industrial Water Chiller;

● Auxiliary System: Optional Dust and Fume Extraction System;

● Operation Interface: Supports Multi-language Switching.

2. Customizable Configuration Items

We support customization of laser power, processing travel range, specialized fixturing systems, operating voltage, machine body color and logo, surface treatment processes, and export packaging solutions. Additionally, we provide comprehensive support services—such as remote after-sales assistance and installation training—to ensure a perfect alignment with our clients' actual production requirements.

Service Guarantee

EVER VIEW offers a comprehensive, factory-direct, one-stop service package. This includes full-process support ranging from solution consulting and workpiece process evaluation to free sample testing, equipment customization, on-site installation guidance, and operator training. Leveraging our reliable manufacturing quality and robust after-sales support system, we provide global manufacturing enterprises with long-term, stable laser processing solutions, empowering our clients to reduce costs, enhance efficiency, and upgrade their production processes.
