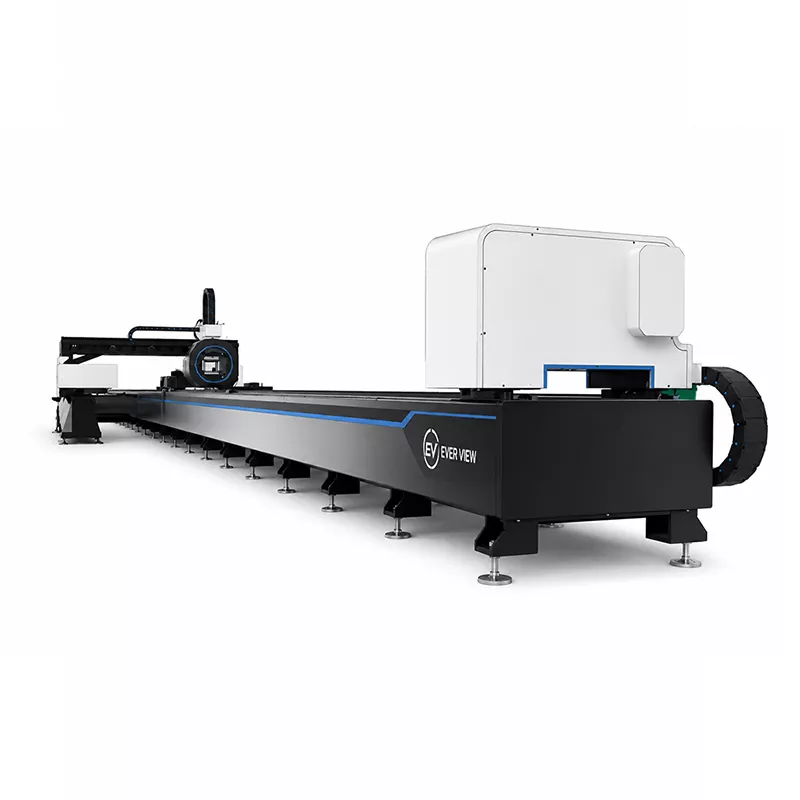

3-in-1 Fiber Laser Cutting Machine for Sheet, Tube and Profile Cutting

The EVER VIEW 3-in-1 Fiber Laser Cutting Machine for Sheet, Tube and Profile Cutting was developed specifically for mixed-metal processing environments. By integrating three core cutting functions—sheets, tubes, and profiles—into a single unit, it effectively replaces multiple single-function machines, serving as an all-in-one cutting solution perfectly suited for modern, flexible manufacturing operations. The machine features a reinforced frame, a stable gantry structure, a specialized support system for tube and profile cutting, and a high-precision servo motion control system. It strikes an optimal balance between production stability, cutting precision, and operational efficiency, while eliminating the drawbacks of traditional equipment—namely, limited functionality and poor adaptability. This makes it fully capable of meeting the large-scale production needs of small-to-medium-sized factories, as well as the flexible supplementary production requirements of large-scale facilities, establishing it as a core asset for any metal processing factory seeking to reduce costs and boost efficiency.

Core Functions and Application Scenarios:

1. Metal Sheet Cutting Function

The sheet cutting module of this machine is compatible with standard industrial metal sheets—including carbon steel, stainless steel, galvanized steel, and aluminum alloys—enabling the precise cutting of various irregular workpieces such as sheet metal panels, equipment enclosures, mounting brackets, flanges, and base plates. When paired with professional nesting software and a CNC control system, the machine intelligently optimizes cutting paths, significantly improving material utilization rates and minimizing material waste. With its stable cutting precision and high workpiece consistency, the machine ensures seamless integration with subsequent processes such—as bending, welding, and assembly—making it widely applicable in the manufacturing of products such as electrical cabinet components, machinery enclosures, agricultural machinery guards, and decorative metal panels.

2. Metal Tube Cutting Function

The 3-in-1 Fiber Laser Cutting Machine for Sheet, Tube and Profile Cutting supports the high-precision processing of common tubular materials—including round, square, and rectangular tubes—enabling the simultaneous completion of complex operations such as hole punching, slotting, angle cutting, and end-shaping in a single pass. Compared to the cumbersome traditional processes of manual cutting, drilling, and grinding, laser cutting enables the completion of multiple processing steps within a single automated program. This effectively enhances workpiece precision and production consistency, while eliminating the issues associated with manual processing—namely, high error rates and low efficiency. The system is ideally suited for core processing applications such as fitness equipment frames, metal furniture tubing, guardrail piping, automotive and agricultural machinery components, and bicycle structural parts.

3. Metal Profile Cutting Functionality

Tailored specifically for structural profiles commonly used in industry—such as channel steel and angle steel—this dedicated cutting system performs precise cutoff, hole punching, slotting, and complex contour cutting operations. It comprehensively resolves the issues inherent in traditional saw cutting and manual marking-and-drilling processes—specifically, slow speeds, poor precision, and excessive burrs. The processed profiles require no complex secondary grinding and can be utilized directly in core applications such as steel structure construction, mechanical support frames, architectural structural fittings, and industrial equipment brackets, thereby empowering factories to achieve standardized and highly efficient profile processing.

Core Product Advantages

1. Multi-functional Versatility; Adaptable to Mixed Orders

Integrating cutting capabilities for three major material types—sheet metal, tubes, and profiles—the system flexibly handles mixed processing orders involving diverse categories and specifications. It eliminates the need to switch equipment or reconfigure production lines, significantly boosting a factory's capacity to accept orders and making it ideally suited for customized, small-batch, and multi-batch production models.

2. Cost Reduction and Efficiency Gains; Optimized Investment

By eliminating the need to purchase multiple single-function machines, the system drastically reduces costs associated with equipment acquisition, maintenance, and labor. Its integrated structural design minimizes material transfer steps between different machines, thereby streamlining the production workflow and shortening production cycles.

3. Factory Space Optimization

The consolidated machine body design replaces multiple standalone units, significantly reducing the required floor space within the factory and optimizing the workshop layout. This enables small-to-medium-sized factories to successfully implement diversified metal processing operations.

4. Superior Cutting Quality; Reduced Secondary Processing

The fiber laser cutting process produces narrow kerfs, smooth cut surfaces, and burr-free edges with high dimensional accuracy. Compared to plasma cutting, flame cutting, or saw cutting, it drastically reduces the need for secondary processes—such as grinding, straightening, and deburring—thereby lowering labor costs and enhancing the fit and alignment for subsequent welding and assembly stages.

5. Stable and Durable; Optimized for Mass Production

Featuring a reinforced machine frame, rack-and-pinion transmission, linear guides, and a servo motor drive system, the machine operates with exceptional stability and a low failure rate. It is designed to sustain long-term, high-volume mass production operations, offering an extended service life and low maintenance and operating costs.

6. Supports Customization

The system can be tailored to specific client requirements—including material thickness, processing dimensions, tube diameters, and production capacity needs—by customizing laser power, processing area, and profile cutting configurations. This ensures the equipment precisely meets the unique production demands of various manufacturing facilities.

Real-World Application Case Study

A small-to-medium-sized general machinery parts manufacturer in China—specializing in mechanical brackets, equipment frames, and agricultural machinery components—had long handled simultaneous orders for sheet metal, tubes, and profiles. Prior to upgrading their equipment, the factory relied on a plasma sheet cutter and a separate tube sawing system; profile processing was entirely dependent on manual marking and drilling. This setup presented significant production bottlenecks: First, the processing of sheets, tubes, and profiles was scattered across different zones, requiring workers to frequently transport materials—a process that was both time-consuming and labor-intensive. Second, traditional cutting methods resulted in excessive burrs and poor dimensional accuracy; consequently, all cut tubes and profiles required subsequent manual deburring and secondary drilling, leading to high labor costs and extended delivery lead times. Third, the use of multiple separate machines consumed a vast amount of floor space, resulting in a cluttered workshop layout that made production management extremely challenging.

In 2024, after acquiring the EVER VIEW 3-in-1 Fiber Laser Cutting Machine for Sheet, Tube and Profile Cutting, the factory completely revolutionized its production model. Now, all sheet metal, tube, and profile components can be processed centrally on a single machine. Material handling and transfer steps have been entirely eliminated, resulting in a much more streamlined and organized workshop workflow. The laser-cut components feature smooth cross-sections and precise dimensions; over 90% of parts no longer require secondary deburring or dimensional correction, thereby drastically reducing manual processing steps. By replacing three traditional machines with a single integrated unit, the factory saved nearly 30% of its floor space while reducing equipment maintenance and operating costs by 40%. Furthermore, the machine enables rapid response to diverse mixed-material orders, boosting order fulfillment efficiency by over 35% and significantly lowering outsourcing costs. Ultimately, the factory’s overall production capacity and market competitiveness have seen a substantial improvement. This case study serves as compelling proof of the equipment's practical utility and economic viability in mixed-metal processing environments.

Applicable Industries and Processing Materials

1. Applicable Processing Materials

● Sheet Materials: Carbon steel, stainless steel, galvanized steel, aluminum alloys, and other common metal sheets.

● Tube Materials: Round tubes, square tubes, and rectangular tubes.

● Profile Materials: Channel steel, angle steel, and other industrial structural profiles.

2. Core Applicable Industries

Custom metal fabrication, machinery manufacturing, steel structure engineering, fitness equipment production, agricultural and forestry machinery manufacturing, automotive parts, metal furniture, guardrails and fencing, engineering equipment components, and the entire spectrum of metal processing industries.

FAQ

Q1: Do the three cutting functions of the "3-in-1" laser cutting machine interfere with one another or compromise processing precision?

A1: No. The EVER VIEW 3-in-1 equipment features a modular, independent processing design. Sheet cutting, tube cutting, and profile cutting each possess their own dedicated processing zones and support systems. Coupled with a specialized CNC control system, the various functional modules operate entirely independently without mutual interference.

Q2: What is the maximum metal thickness this equipment can process, and does it support customization for different power levels?

A2: The maximum thickness of the material the equipment can process is determined by the laser power. We offer customization options across multiple laser power levels—ranging from 1000W to 6000W—allowing the machine to be optimized for both high-precision cutting of thin materials and high-efficiency cutting of thick materials.

Q3: Is the equipment easy for novice operators to learn, and does the brand provide comprehensive after-sales support?

A3: The equipment is equipped with an intelligent CNC operating system featuring a clean, intuitive interface and simplified programming. Consequently, novice operators can achieve independent operation after undergoing just a short period of training. Furthermore, EVER VIEW provides a comprehensive, one-stop support package. This includes equipment installation and commissioning, free operator training, guidance on daily maintenance and operation, lifetime technical support, and standardized export packaging—ensuring the stable operation of the equipment throughout its lifecycle and eliminating any post-purchase concerns for our customers.

Brand Strength and Service Assurance

As a professional laser equipment manufacturer based in China, EVER VIEW has dedicated years to the R&D, production, and sales of fiber laser cutting equipment. We possess mature manufacturing processes, a rigorous quality control system, and extensive experience in providing industry-specific solutions, making us a trusted and reliable supplier for customers worldwide. Tailored to meet diverse client requirements, EVER VIEW offers a comprehensive suite of end-to-end services—including customized equipment configuration, sample processing and testing, facility layout planning, custom export packaging, on-site installation and training, and lifetime technical support. Whether for upgrading legacy equipment, adding new production lines, or establishing flexible manufacturing lines in new facilities, we provide exclusive, integrated cutting solutions.
